Lightweight aluminium frame with comfort geometry and 50 mm tyre clearance
Lockable suspension fork with new bars and stem for extra comfort
Hydraulic disc brakes
Shimano ESSA 1x8-speed drivetrain
Multiple fixing points for rear rack and fenders
Full-equipment EQ kit available separately

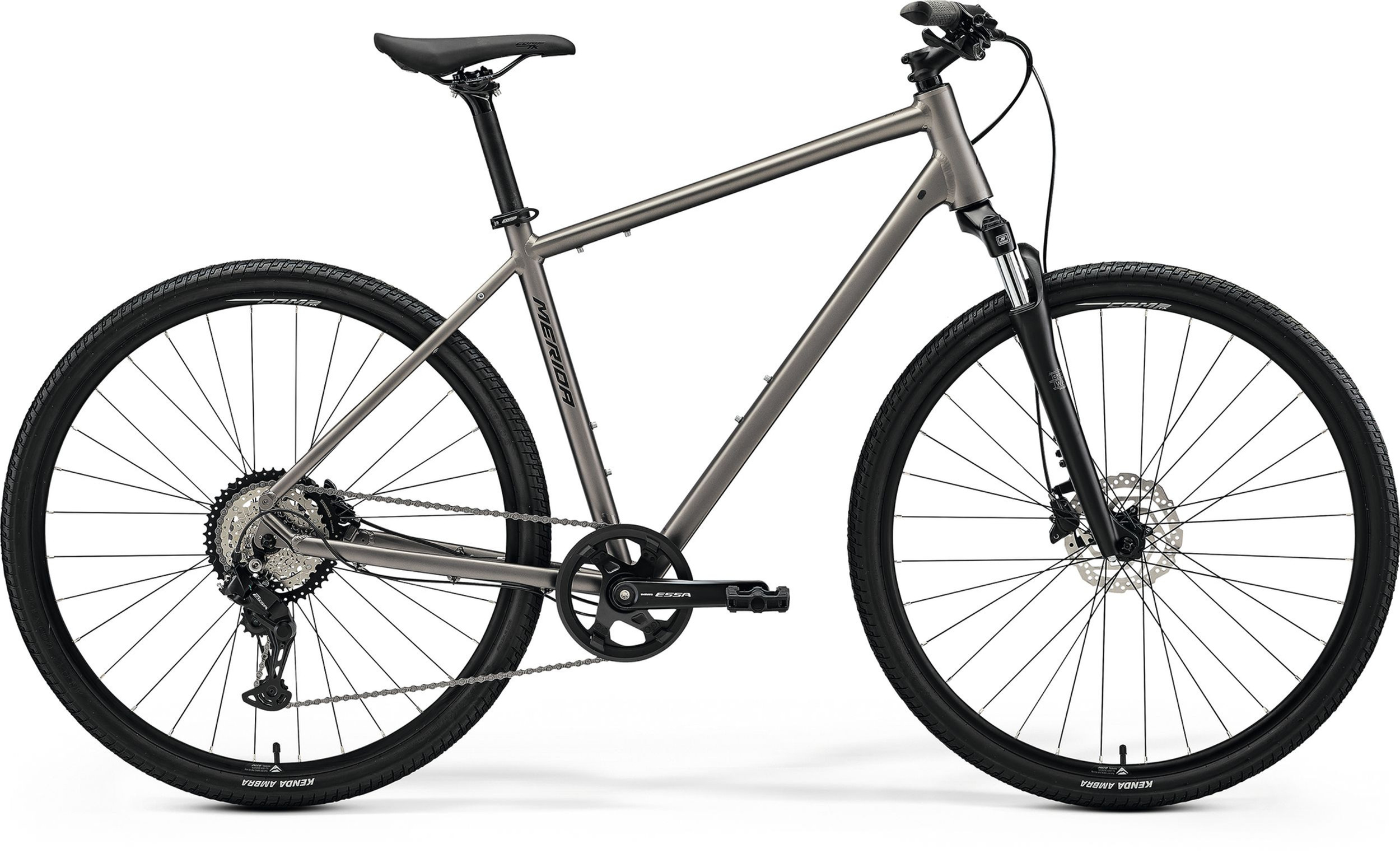

Merida Crossway 20
Specifications
SEASON
2026
BOTTOM BRACKET
Shimano UN101 LL123
BRAKES
F: Shimano MT200 | R: Shimano MT200
CASSETTE
Shimano CS-HG400-8; 11-45 ATC; 8 GER
CHAIN
KMC Z8
COLOUR
SILK WARM SLATE GREY(BLACK)
CRANKSET
Shimano Essa FC-U2001 40 ATC; MAT Aluminium; 170mm
DERAILLEUR REAR
Shimano Essa RD-U2000-8; GS
FORK
SR Suntour NEX DS; Coil; 63 STR; 700x50C max. WHS
FRAME
CROSSWAY TFS IV; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR
GRIP
MERIDA COMP TK
HANDLEBAR
MERIDA COMP CC; MAT aluminium; 680 WHB; 10 RHB
HANDLEBAR STEM
MERIDA COMP CC; MAT aluminium; 31.8 DSH; 17 ASD; 90 mm all sizes
HEADSET
MERIDA M2345
HUBS
F: Shimano TX505; 100x9 WHF; 32 SPH; Centerlock | R: Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
PEDALS
VP VPE-891
RIM
MERIDA COMP TK; 17 IWR; MAT aluminium
ROTOR FRONT
Shimano RT10; 160 mm
ROTOR REAR
Shimano RT10; 160 mm
SADDLE
MERIDA COMP TK
SEAT CLAMP
MERIDA COMP QR
SEAT POST
MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB
SHIFTERS
F: | R: Shimano Essa SL-315-8R
SPOKES
Black steel
TYRES
F: Kenda Ambra K1278; 700x45C; wire | R: Kenda Ambra K1278; 700x45C; wire
