Lightweight CF3 carbon frame with comfort orientated geometry and confidence inspiring handling
Shimano 105 Di2 electronic 12-speed groupset
MERIDA EXPERT SL two-piece cockpit
MERIDA EXPERT SL II carbon seat post
Maxxis Re-Fuse 32 mm tyres on MERIDA EXPERT SL II wheels
DISC COOLER technology and WIRE PORT cable routing

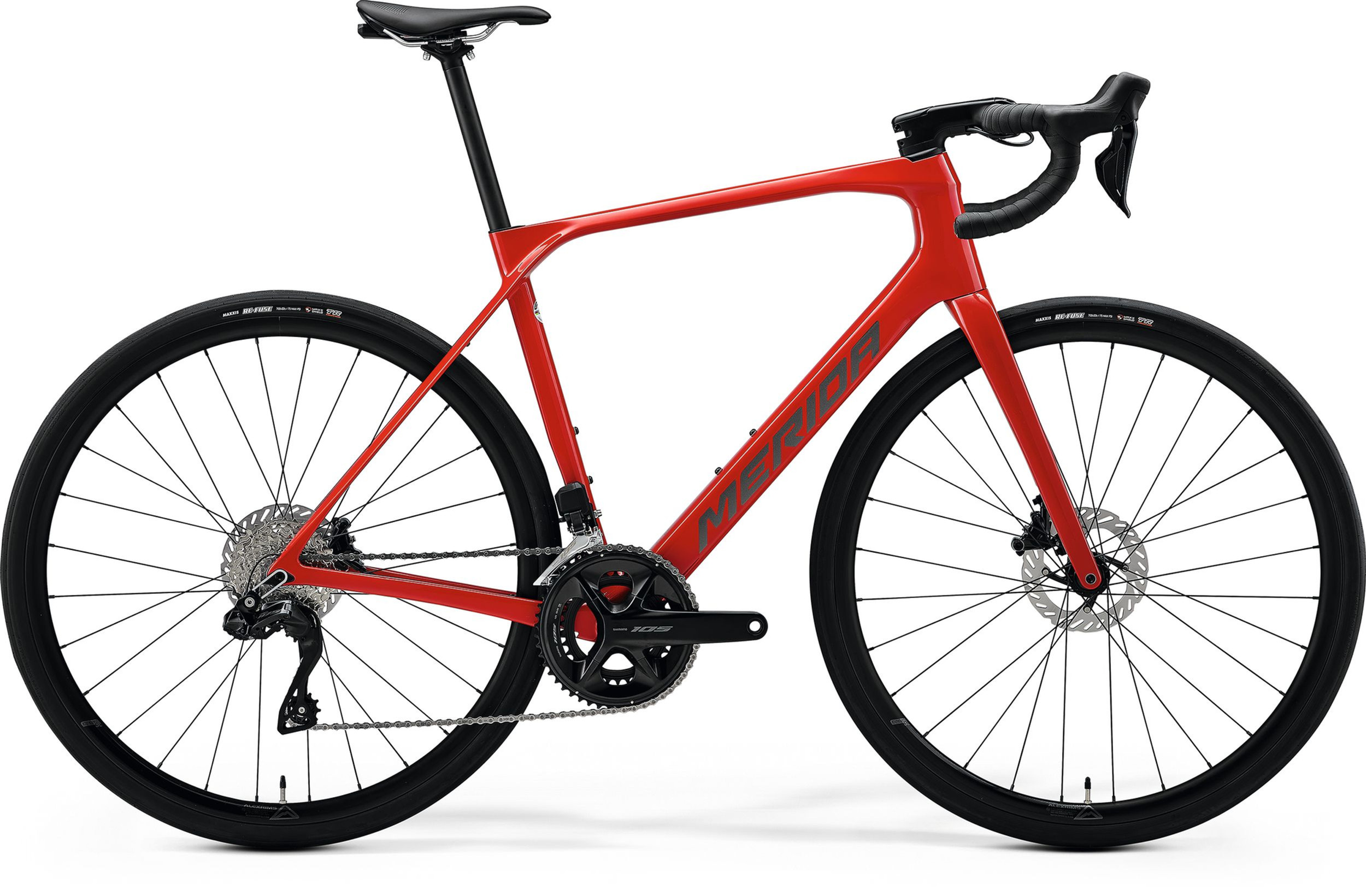

Merida Scultura Endurance 6000
Specifications
SEASON
2026
ACCESSORIES
Garmin Carrier + Garmin insert*2 + GoPro/Light Mount; Seatpost adapter for DI2 battery
AXLES
F: MERIDA EXPERT TR | R: MERIDA EXPERT SL; including removable lever; 6/4mm allen key
BOTTOM BRACKET
Shimano SM-BB71-41B; Pressfit 86.5
BRAKES
F: Shimano 105; Hydraulic disc | R: Shimano 105; Hydraulic disc
BRAKE LEVERS
Shimano 105
CASSETTE
Shimano 105 R7101; 11-34 ATC; 12 GER
CHAIN
Shimano M6100-12
COLOUR
DARK RACE RED(GUNMETAL GREY)
CRANKSET
Shimano 105 R7100; 50-34 ATC; 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
DERAILLEUR FRONT
Shimano 105 Di2
DERAILLEUR REAR
Shimano 105 Di2
FORK
SCULTURA ENDURANCE CF3 DISC; MAT carbon; 700x35C max. WHS
FRAME
SCULTURA ENDURANCE CF3 II; MAT carbon; 700x35C max./ 700x32C (with fender) max. WHS; 100x12/ 142x12 AST; BB86 BBR
GRIP
MERIDA ROAD Expert
HANDLEBAR
MERIDA EXPERT SLII; MAT aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)
HANDLEBAR STEM
MERIDA EXPERT SL 2PII; MAT aluminium; -9 ASD; 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL
HEADSET
MERIDA TEAM SL (SE-301 neck)
HUBS
F: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock | R: Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock
RIM
MERIDA EXPERT SL III; 23 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
ROTOR FRONT
Shimano CL700; 160mm
ROTOR REAR
Shimano CL700; 160mm
SADDLE
MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool
SEAT CLAMP
MERIDA EXPERT
SEAT POST
MERIDA EXPERT SL; 27.2 DSP; 0 SSB; Carbon
SHIFTERS
F: Shimano 105 disc Di2 | R: Shimano 105 disc Di2
SPOKES
Double Butted Black stainless
TYRES
F: Maxxis RE-FUSE; 700x32C; fold | R: Maxxis RE-FUSE; 700x32C; fold
