Test and award winning full carbon frame with dropped chainstay for 700x45 mm clearance
Multiple mounting points for cages, bags and fenders
WIRE PORT internal cable routing for clean looks and scuff free bag fitting
Carbon fork with cargo mounting points and routing for dynamo hub
Relaxed head angle and MTB-style geometry for off-road stability
Shimano GRX 2x10-speed gravel groupset

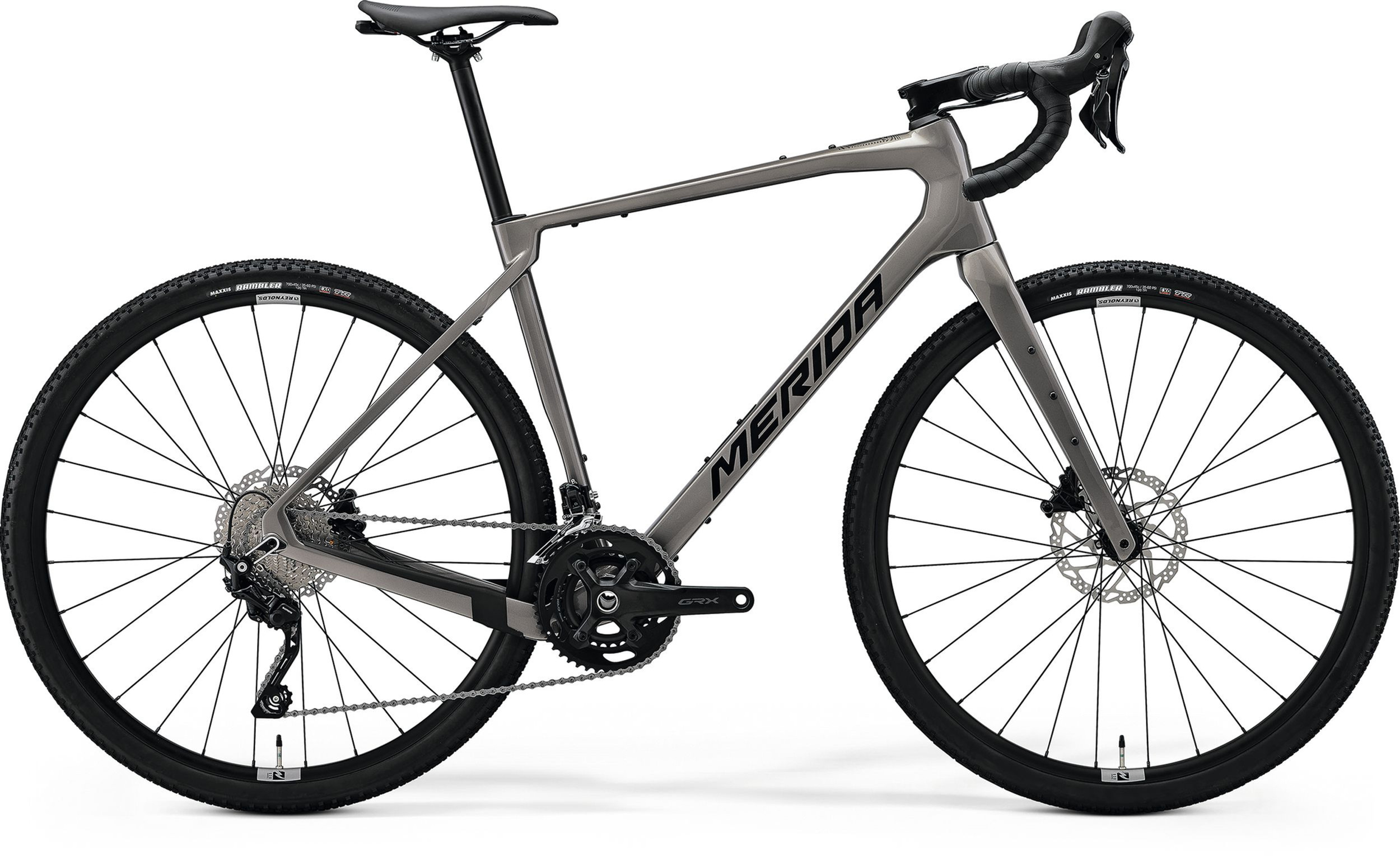

MERIDA SILEX 4000 GRAVEL BIKE WARM SLATE GREY/BLACK
Specifications
SEASON
2026
ACCESSORIES
Bottle Cage: Fidlock Integrated Base & MERIDA Bottle
AXLES
F: MERIDA EXPERT TR | R: MERIDA EXPERT TR; including removable lever; 6/4mm allen key
BOTTOM BRACKET
Attached
BRAKES
F: Shimano GRX400; Hydraulic disc | R: Shimano GRX400; Hydraulic disc
BRAKE LEVERS
Shimano GRX 410
CASSETTE
Shimano CS-HG50; 11-36 ATC; 10 GER
CHAIN
KMC X10
COLOUR
WARM SLATE GREY(BLACK)
CRANKSET
Shimano GRX600; 46-30 ATC; 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
DERAILLEUR FRONT
Shimano GRX400
DERAILLEUR REAR
Shimano GRX400
FORK
MERIDA SILEX II CF2; Tapered; MAT carbon; 700x47C max. WHS
FRAME
SILEX CF2 II; MAT carbon; 700x45C max.WHS; 100x12/142x12 AST; BSA BBR
GRIP
MERIDA ROAD Expert
HANDLEBAR
MERIDA EXPERT GRII; MAT aluminium; 400mm (XXS-XS-S) , 420mm (M) , 440mm (L-XL)
HANDLEBAR STEM
MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; 80 mm all sizes
HEADSET
Acros ICR MERIDA EXTERNAL neck w/diecast splitring
HUBS
F: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock | R: Shimano FH-TC500-HM; 12-142 WHR; 28 SPH; Centerlock
RIM
Reynolds G30
ROTOR FRONT
Shimano RT54; 180mm
ROTOR REAR
Shimano RT54; 180mm
SADDLE
MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP
MERIDA EXPERT
SEAT POST
MERIDA EXPERT SL; 27.2 DSP; 0 SSB; Carbon
SHIFTERS
F: Shimano GRX 400; disc | R: Shimano GRX 400; disc
SPOKES
Black stainless
TYRES
F: Maxxis Rambler; 700x45C; fold; TR; EXO | R: Maxxis Rambler; 700x45C; fold; TR; EXO
